Model No.: SX-caitlin
hole size : 76.2x12.7mm wire diameter :4mm
surface treatment: pvc coated , electro galvanized +pvc coated ; hot galvanized Others we can do as your demand

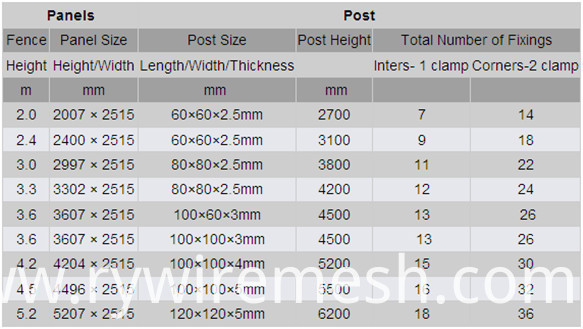

2. specifications of 358 wire fencing 3. 358 wire fencing surface treatment 1) Use the hot-dipped galvanized (or electro galvanized) wire as material,after welding,begin PVC or plastic spraying. 2) Use the low carbon steel wire welded the panel, then electro or hot-dipped galvanized treatment, finally PVC treatment. 3) In Europe,generally choose the galvanized after welding or PVC after welding. 4. Posts of 358 wire fencing
5. 358 wire fencing process Material——wire drawing——straighten——cutting——welding——folding --PVC coated— —packing 6. 358 wire fencing feature 358 security fence has intensive mesh,heavy weight.It is difficult to move,can’t be climbed or destroyed from any angle by any instruments. .Anti-climb:More small openings, no toe or finger holds. .Anti-cut:robust wire and welded joints make cutting very difficult. .High-strength:The superior welding technique and process control create a stronger fusion between the wires Packaging & Shipping Fence panel packing <1>Plastic film at the bottom to avoid the panel be destroyed <2>4 metal corners to ensure the panel strong and uniform <3>wood plate at the top of pallet to keep the under panel <4>pallet tube size:40*80mm tubes at the botom vertical position
Fence Post packing <1>The caps have been installed on the top of post, which reduce your labor cost and installing time;
<2> Each post are packed by a long plastic bag avoiding damaged by friction;
<3>All posts are packed by metal pallet for loading and unloading. Accessories packing <1>stainless steel nuts and screws install with clips <2>5 sets clips load into one plastic bag <3>12 bags into one carton box Quality control ♥ Here have a measuring of our products: Company Information 1. Year of Established:1992
2. Occupied Area: 33350m2
3.No. of QA/QC Inspector(s): 5 people
4. Annual Export Quota: USD,14,788,800.00
5. Quality Control:
ISO9001:2008; CE; BV report;SGS certifications
Akzo Nobel; Du Pont
7. Fence Market:
Poland; Russia; Germany; Italy; France;etc. European countries;
South Africa; America and Asia countries (like: UAE; Malasia;etc.) Our Services 1.24 hours online service. 2.Best pre-sale and after-sale service. 3.15 days after receiving the deposit shipment. 4.We will choose the shipping company with good service and low price for you. 5.Loading the goods: We will track all the way, to ensure product safety, quick to arrive at the designated port. 6.Arrival of the goods: We will provide installation instructions and subsequent technical guidance 7. Company for products and accessories, for a long time to be able to provide various products accessories at cost to the customer at any time. Contact us if you need more details on High Security Fence. We are ready to answer your questions on packaging, logistics, certification or any other aspects about High Security Fence/no Climb Fence、High Security Fence/vandal Resistant Security Fencing. If these products fail to match your need, please contact us and we would like to provide relevant information.
Model NO.: highway guardrail Cold bend Roll Forming Machine Voltage: 380V 50Hz 3phases Control System: PLC Computer Control with Inverter Cutter Standard: Cr12 Roller Standard Cr12 Color: Blue/Red / Green /Gray Roller Material: 45# Forged Steel, with Hard Chrome Plating Effective Width: 750-900mm Power: 22 Kw Application:...
Model NO.: temporary001 Size: 1.8mx2.5m Trademark: peaceful fence Transport Package: pallet Specification: ASTM Origin: China HS Code: 73142000 We are professional manufacturer of temporary fence, temporary fencing, portable fence, pool fence, fence barrier.Our temporary fencing systems are strong and durable and also can...
Model NO.: temporary fence Color: Silver Type: Welded Mesh Certification: ISO9001 Condition: New Size: 2.1mx2.4m Frame: 32mmx2.0mm Wire Thickness: 4.0mm Finishing: Galvanized Feet: Plastic or Metal Support Post: One Set/9.6m Clamp: Metal Used: Construction Area Moveabel: Yes Quality: Good Trademark: QYM Transport Package:...
Support Post: One Set/9.6m Wire Thickness: 4.0mm Mesh Size: 60mmx150mm Frame: 32mmx2.0mm Clamp: Metal Feet: Plastic or Metal Color: Silver Application: Construction Wire Mesh, Protecting Mesh, Decorativ Trademark: HUAJIU Transport Package: in Pallet Specification: 2.1mx2.4m Origin: China HS Code: 7308900000 Temporary fence,...
